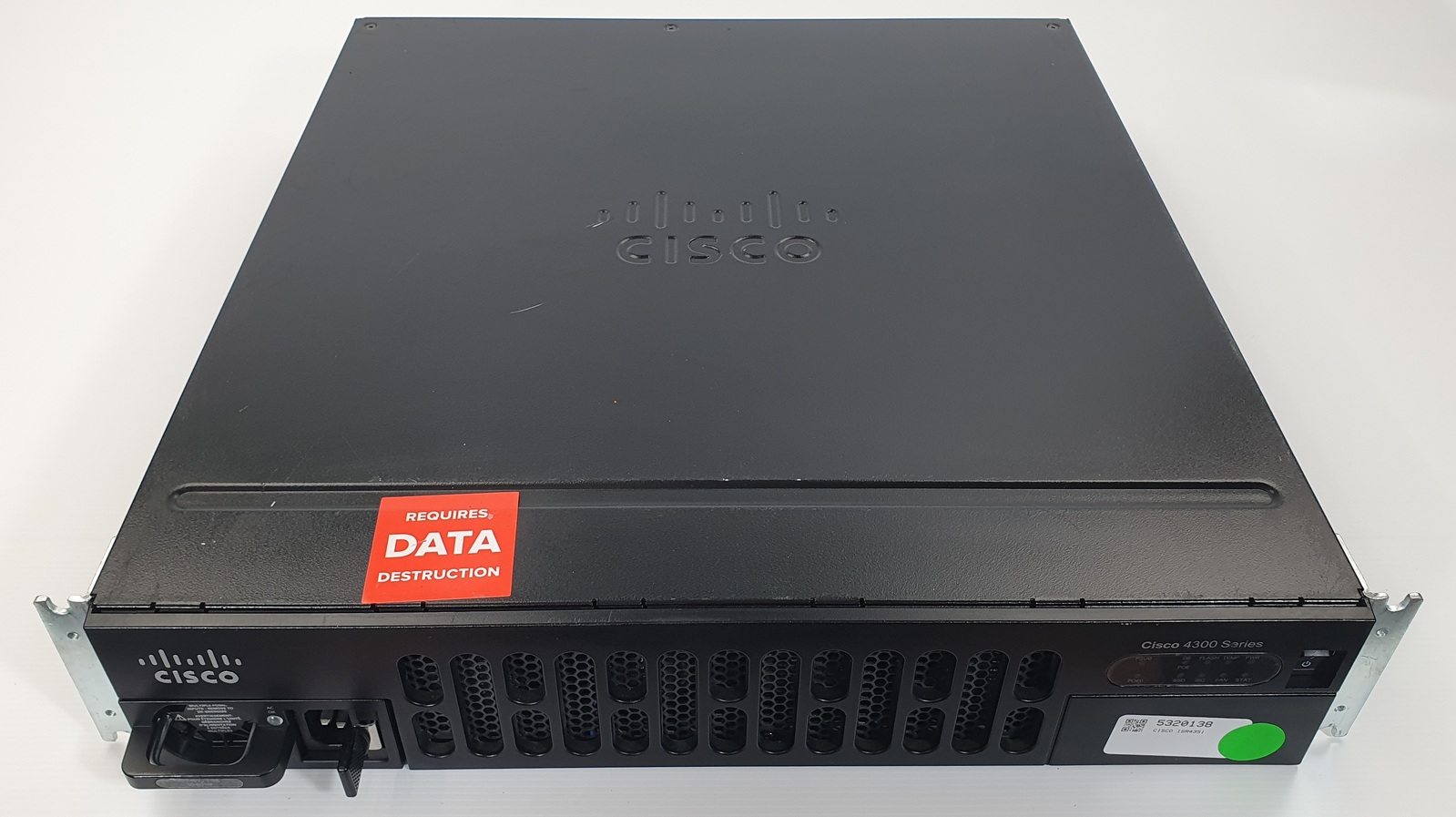

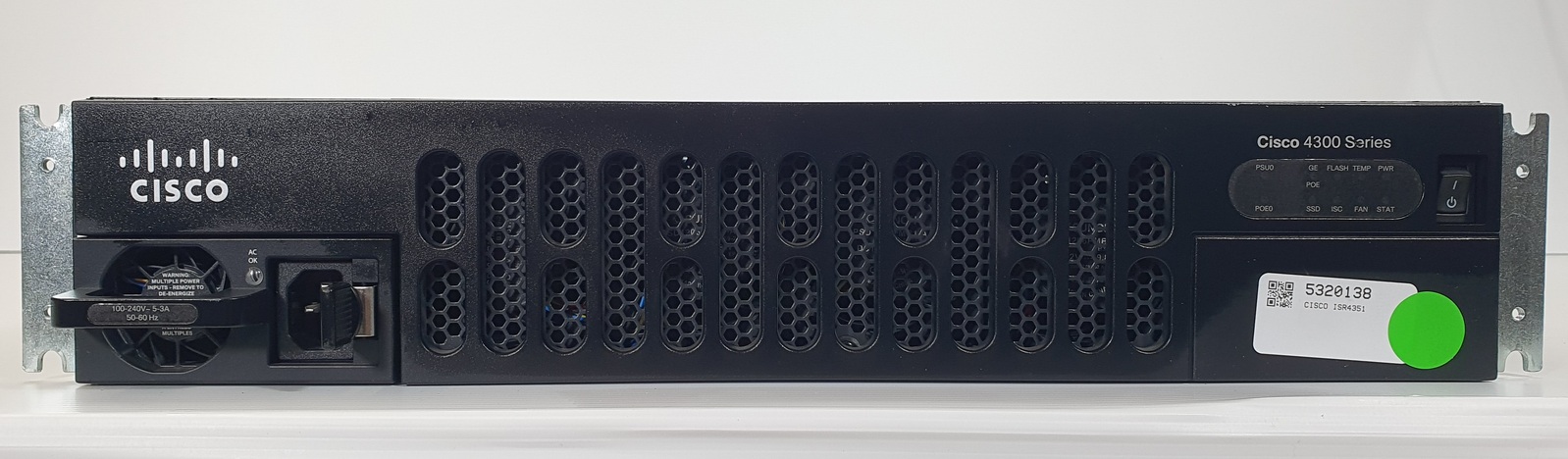

Cisco ISR 4351 Integrated Services Router PoE

Description
Specifications

Cisco ISR 4351

Specifications

PoE supports 500W

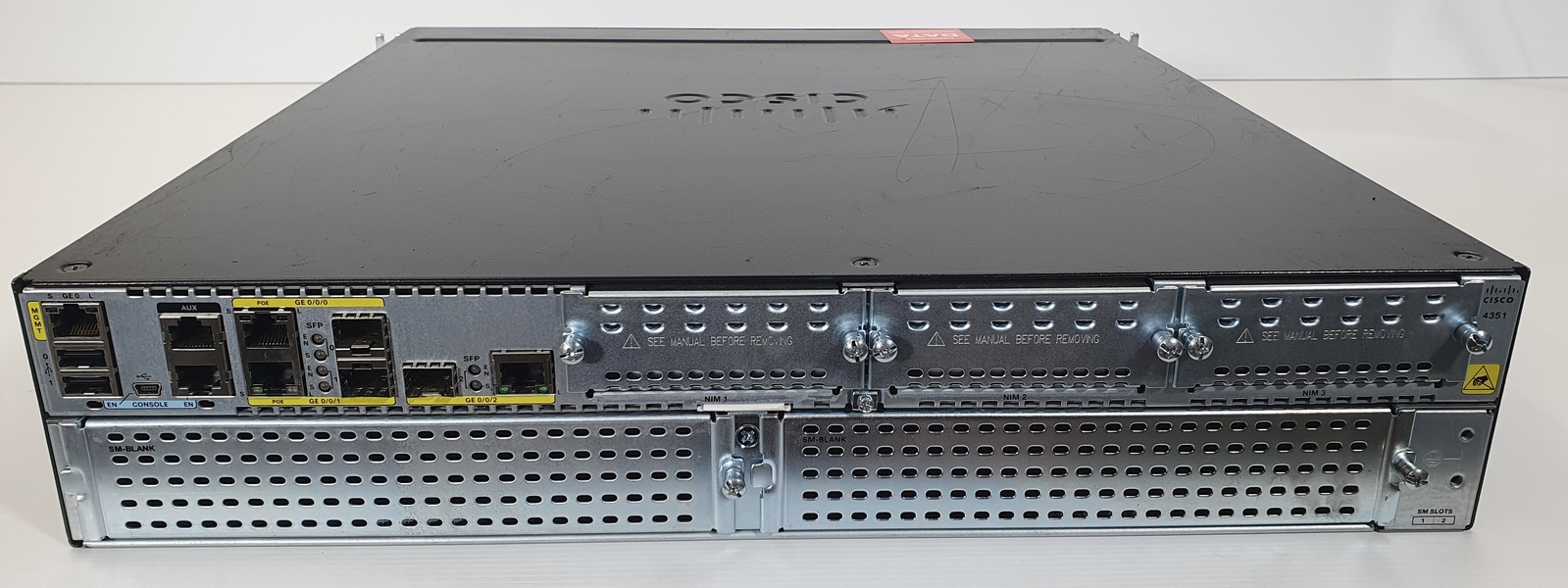

Integrated WAN ports, 2 PoE GE / SFP; 1 GE / SFP

Router#show version
Cisco IOS XE Software, Version 16.06.09
Cisco IOS Software [Everest], ISR Software (X86_64_LINUX_IOSD-UNIVERSALK9-M), Version 16.6.9, RELEASE SOFTWARE (fc3)
Technical Support:
Copyright (c) 1986-2021 by Cisco Systems, Inc.
Compiled Wed 24-Feb-21 09:21 by mcpre

Cisco IOS-XE software, Copyright (c) 2005-2021 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.

ROM: IOS-XE ROMMON

Router uptime is 2 minutes
Uptime for this control processor is 4 minutes
System returned to ROM by LocalSoft at 11:21:57 GMT Mon May 31 2021
System image file is "bootflash:isr4300-universalk9.16.06.09.SPA.bin"
Last reload reason: LocalSoft

This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:

Suite License Information for Module:'esg'

--------------------------------------------------------------------------------
Suite Suite Current Type Suite Next reboot
--------------------------------------------------------------------------------
FoundationSuiteK9 None None None
securityk9
appxk9

AdvUCSuiteK9 None None None
uck9
cme-srst
cube

Technology Package License Information:

-----------------------------------------------------------------
Technology Technology-package Technology-package
Current Type Next reboot
------------------------------------------------------------------
appxk9 None None None
uck9 None None None
securityk9 None None None
ipbase ipbasek9 Permanent ipbasek9

cisco ISR4351/K9 (2RU) processor with 1795969K/6147K bytes of memory.
Processor board ID FLM2241V0EJ
3 Gigabit Ethernet interfaces
32768K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
3207167K bytes of flash memory at bootflash:.
0K bytes of WebUI ODM Files at webui:.

Configuration register is 0x2142

Router#show inve
Router#show inventory

+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
INFO: Please use "show license UDI" to get serial number for licensing.
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

NAME: "Chassis", DESCR: "Cisco ISR4351 Chassis"
PID: ISR4351/K9 , VID: V04 , SN: FLM2241V0EJ

NAME: "Power Supply Module 0", DESCR: "450W AC Power Supply for Cisco ISR4450, ISR4350"
PID: PWR-4450-AC , VID: V02 , SN: DCA2136X4B4

NAME: "Fan Tray", DESCR: "Cisco ISR4450, ISR4350 Fan Assembly"
PID: ACS-4450-FANASSY , VID: , SN:

NAME: "module 0", DESCR: "Cisco ISR4351 Built-In NIM controller"
PID: ISR4351/K9 , VID: , SN:

NAME: "NIM subslot 0/0", DESCR: "Front Panel 3 ports Gigabitethernet Module"
PID: ISR4351-3x1GE , VID: V01 , SN:

NAME: "module 1", DESCR: "Cisco ISR4351 Built-In SM controller"
PID: ISR4351/K9 , VID: , SN:

NAME: "module 2", DESCR: "Cisco ISR4351 Built-In SM controller"
PID: ISR4351/K9 , VID: , SN:

NAME: "module R0", DESCR: "Cisco ISR4351 Route Processor"
PID: ISR4351/K9 , VID: V04 , SN: FLM223705L9

NAME: "module F0", DESCR: "Cisco ISR4351 Forwarding Processor"
PID: ISR4351/K9 , VID: , SN:

Router#show env
Router#show environment all
Sensor List: Environmental Monitoring
Sensor Location State Reading
Temp: Temp 1 P0 Normal 29 Celsius
Temp: Temp 2 P0 Normal 24 Celsius
Temp: Temp 3 P0 Normal 26 Celsius
V: PEM Out P0 Normal 12447 mV
I: PEM In P0 Normal 1 A
I: PEM Out P0 Normal 3 A
P: In pwr P0 Normal 45 Watts
P: Out pwr P0 Normal 31 Watts
RPM: fan0 P0 Normal 3432 RPM
RPM: fan0 P2 Normal 5340 RPM
RPM: fan1 P2 Normal 5340 RPM
RPM: fan2 P2 Normal 5280 RPM
RPM: fan3 P2 Normal 5280 RPM
P: pwr P2 Normal 8 Watts
Temp: Inlet 1 R0 Normal 22 Celsius
Temp: Inlet 2 R0 Normal 20 Celsius
Temp: Outlet 1 R0 Normal 25 Celsius
Temp: Outlet 2 R0 Normal 21 Celsius
Temp: CPU R0 Normal 27 Celsius
V: 12v R0 Normal 12466 mV
V: 5v R0 Normal 5029 mV
V: 3.3v R0 Normal 3285 mV
V: 3.0v R0 Normal 3001 mV
V: 2.5v R0 Normal 2481 mV
V: 1.35v CPU R0 Normal 1344 mV
V: 1.8v R0 Normal 1809 mV
V: 1.2v R0 Normal 1198 mV
V: VNN CPU R0 Normal 993 mV
V: 1.1v R0 Normal 1068 mV
V: 1.0v R0 Normal 999 mV
V: 1.8v CPU R0 Normal 1811 mV
V: DDR R0 Normal 1509 mV
V: 3.3v STBY R0 Normal 3264 mV
V: 1.5v R0 Normal 1499 mV
V: 1.0v CPU R0 Normal 990 mV
V: VCC CPU R0 Normal 962 mV
V: 0.75v R0 Normal 753 mV
I: 12v R0 Normal 3 A
P: pwr R0 Normal 31 Watts

Router#show lice
Router#show license
Index 1 Feature: appxk9
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Active, Not in Use, EULA not accepted
License Count: Non-Counted
License Priority: None
Index 2 Feature: uck9
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Active, Not in Use, EULA not accepted
License Count: Non-Counted
License Priority: None
Index 3 Feature: securityk9
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Active, Not in Use, EULA not accepted
License Count: Non-Counted
License Priority: None
Index 4 Feature: ipbasek9
Period left: Life time
License Type: Permanent
License State: Active, In Use
License Count: Non-Counted
License Priority: Medium
Index 5 Feature: FoundationSuiteK9
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Active, Not in Use, EULA not accepted
License Count: Non-Counted
License Priority: None
Index 6 Feature: AdvUCSuiteK9
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Active, Not in Use, EULA not accepted
License Count: Non-Counted
License Priority: None
Index 7 Feature: cme-srst
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Active, Not in Use, EULA not accepted

License Priority: None
Index 8 Feature: hseck9
Index 9 Feature: throughput
Period left: Life time
License Type: RightToUse
License State: Active, In Use
License Count: Non-Counted
License Priority: Low
Index 10 Feature: internal_service
