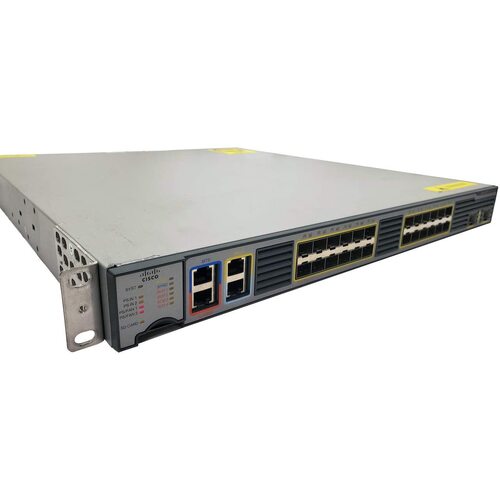

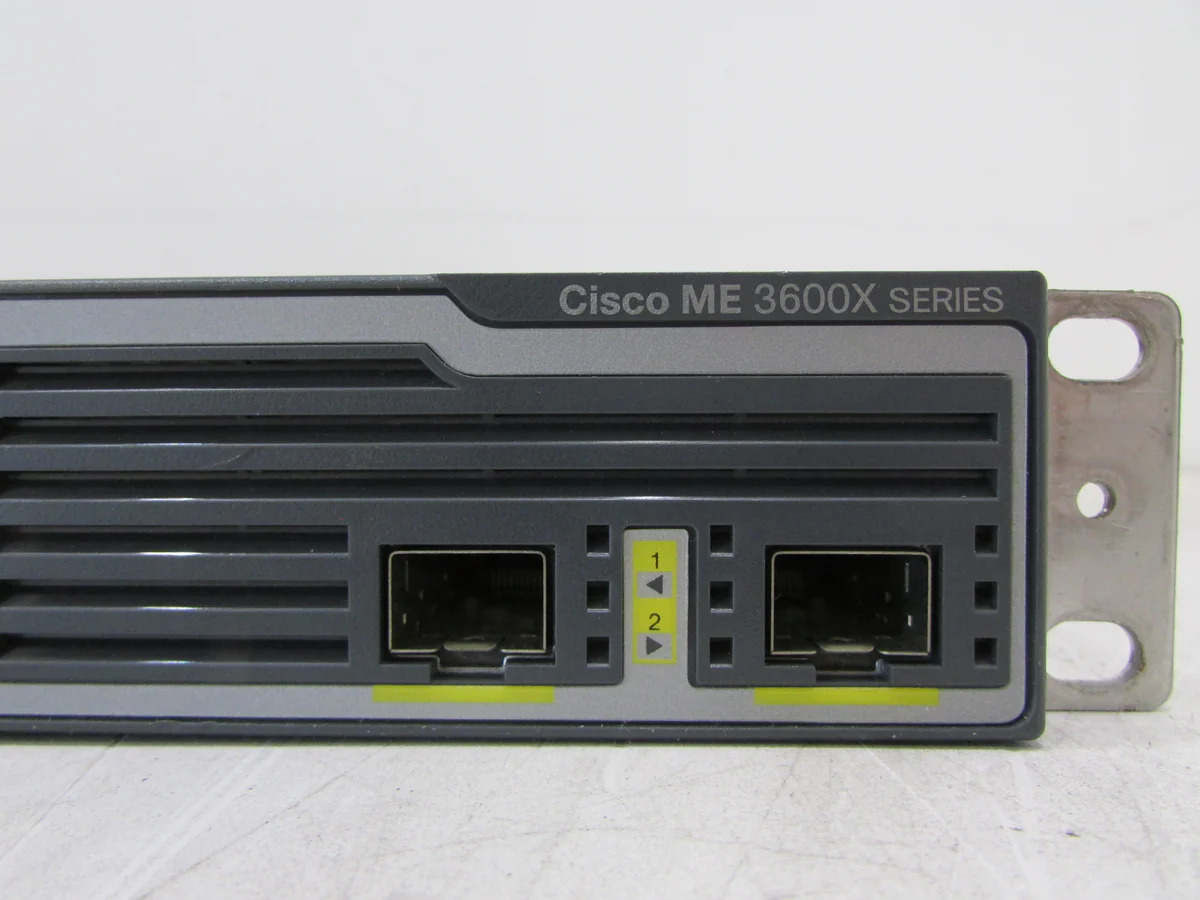

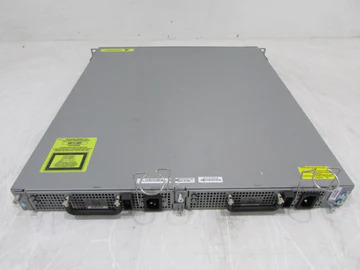

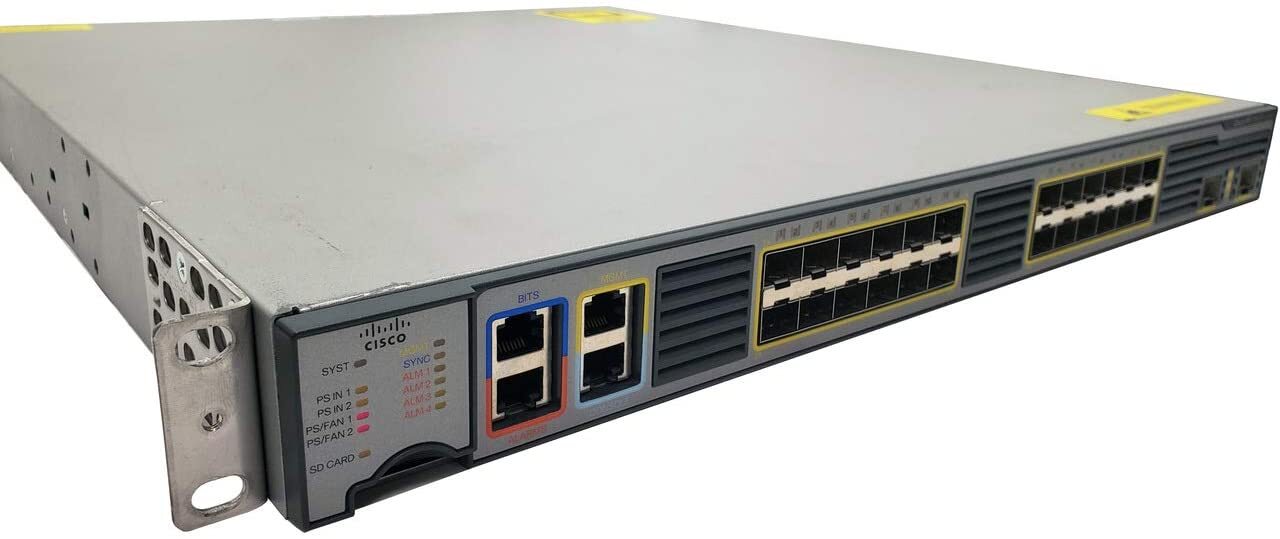

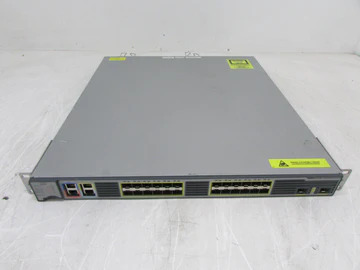

Cisco ME 3600X-24FS

RACK MOUNT INCLUDED

DUAL PSU

Description

Cisco ME 3600X-24FS

Performance

Forwarding bandwidth full duplex: Cisco ME 3600X-24FS AC or DC: 44 Gbps

Forwarding rate: Cisco ME 3600X-24FS AC or DC: 65 Mpps

Configurable maximum transmission unit (MTU) of up to 9,800 bytes, for bridging on Gigabit and 10 Gigabit

Memory

DRAM: 1GB

Flash: 64MB

Packet buffer: 44MB

External SD Flash: 2GB and 4GB SD Flash cards (optional)

Connectors and

cabling

SFP ports:

●  10/100/1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

●  100BASE-FX and -LX: Duplex LC receptacle fiber connectors (multimode and single-mode)

●  100BASE-BX: Single-fiber LC receptacle connector (single-mode fiber)

●  100BASE-EX: SFP module for 100 Mb port, 1310 nm wavelength, 40 km over single-mode fiber

●  100BASE-ZX: SFP module for 100 Mb port, 1550 nm wavelength, 80 km over single-mode fiber

●  1000BASE-BX: Single-fiber LC receptacle connector (single-mode fiber)

●  1000BASE-SX, -LX/LH, -EX and -ZX and CWDM and DWDM: Duplex LC receptacle fiber connectors (multimode and single-mode fiber)



SFP+ ports:

●  SFP-10G-SR

●  SFP-10G-LR

●  SFP-10G-ER

●  SFP-10G-ZR

●  SFP-10G-LRM

●  DWDM SFP-10GE

●  SFP-H10GB-CUxM where x = 1, 3, 5 meters

SFP+ port supports 1000BASE-X except 1000BASE-T

Management console port: RJ-45-to-DB9 cable for PC connections

Management 10/100/1000 Ethernet: RJ-45 connector

BITS and alarm ports: RJ-45 connector

Indicators

Per-port status LEDs: Link integrity, port disabled, and activity indications

Power input /output status LED

Alarm status LED

SynchE status LED

System-status LED

Dimensions

All SKUs 1.72-in. x 17.50-in. x 20.33-in. (H x W x D)

Weight

ME-3600X-24FS-M 14.50 lb (6.57 kg)

PWR-ME3KX-AC 2.90 lb (1.31 kg)

PWR-ME3KX-DC 3.10 lb (1.40 kg)

ME-FANTRAY 1.65 lb (0.74 kg)



Condition

This item has been classed as being in Grade A Condition, fully working with only minor signs of use.

Included Accessories

  • Rack Mounts
  • Power Cable

Warranty

  • 180 Days Warranty

(1698)

SKU 1698
Barcode # 2551238579012387589
Brand Cisco
