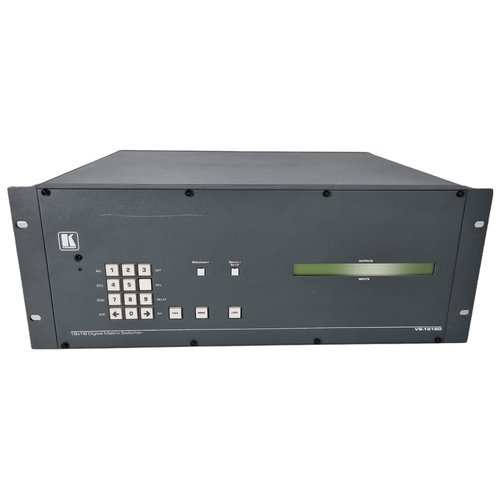

The VS−1616D is a high−performance matrix switcher chassis for AV signals. The unit is modular and populated from 2x2 to 16x16 in increments of two inputs and/or two outputs. The chassis includes a power supply, control module and a test module that can monitor and test any input and output in the matrix. VS−1616D supports a wide variety of input and output cards for different AV signals.

  • Inputs  - 2 to 16 (in increments of 2) of various inputs
  • Outputs - 2 to 16 (in increments of 2) of various outputs
  • Max Data Rate - 10.2Gbps (3.4Gbps per graphic channel) depending on the cards used
  • Max Resolution - Up to 4K @60Hz (4:2:0)
  • Controls - Front panel buttons, RS–232, Ethernet
  • Rack-Mountable

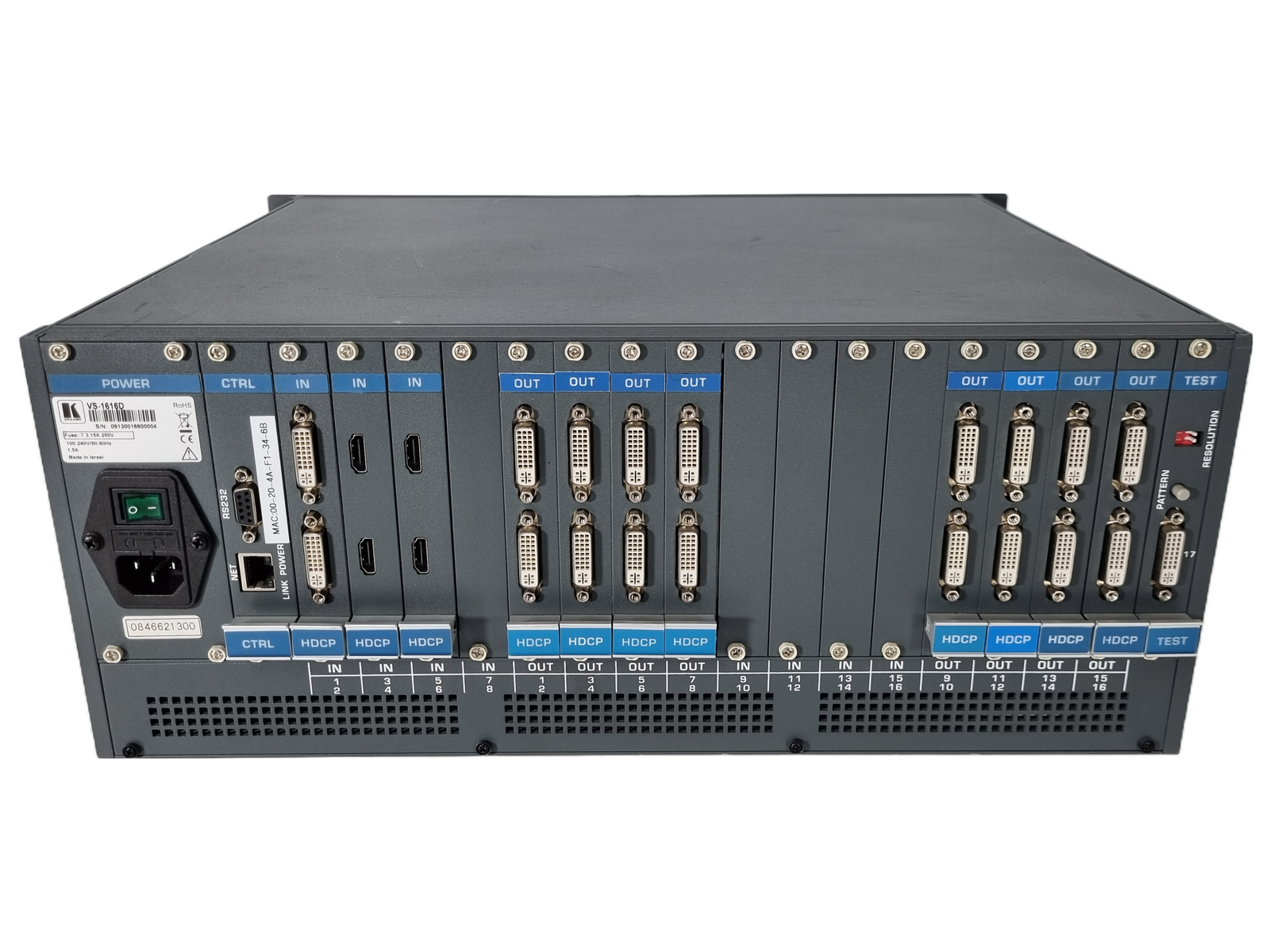

Installed Modules

  • 8x HDCP-OUT2-F16
  • 1x HDCP-IN2-F16
  • 2x H-IN2-F16

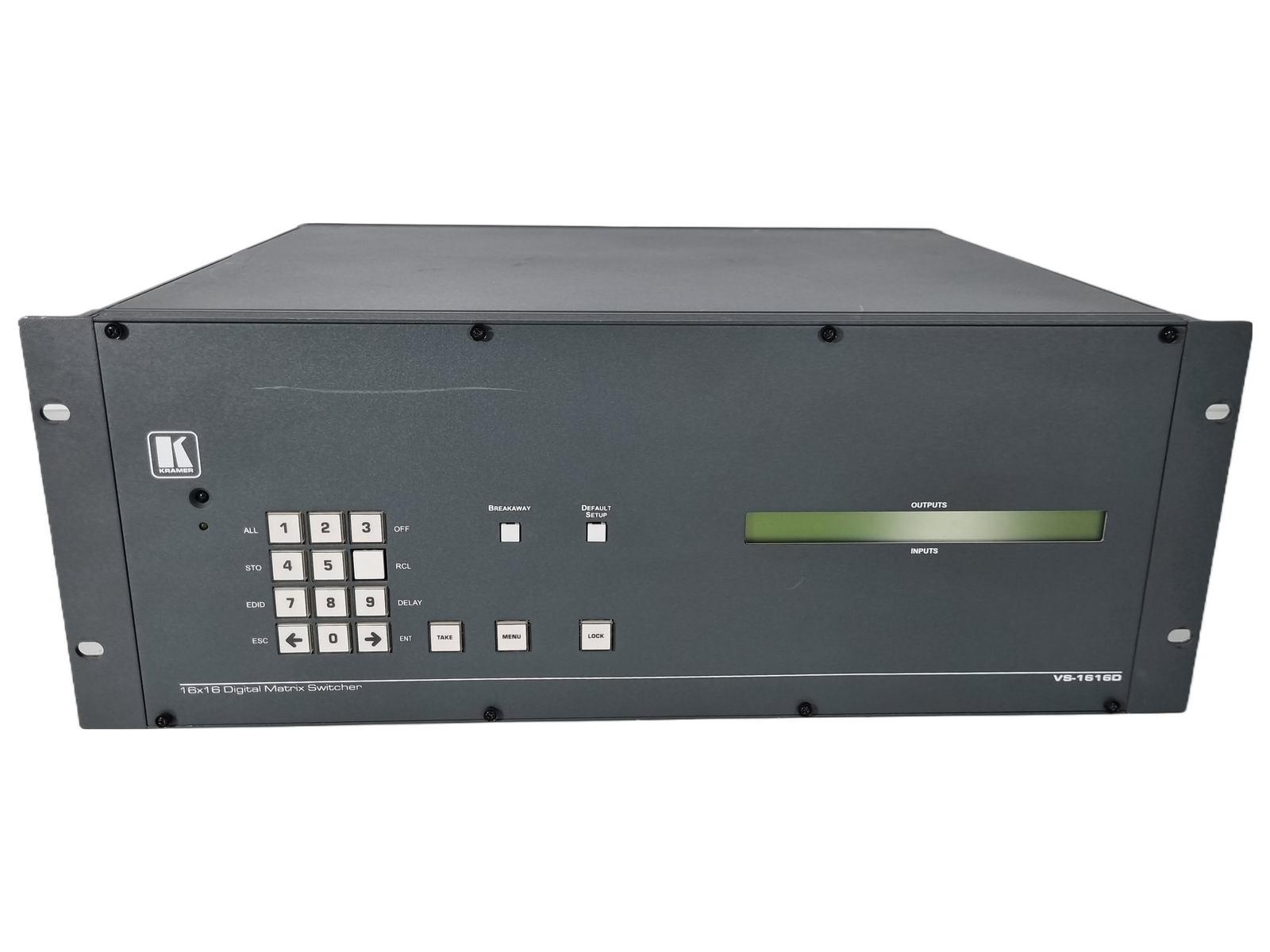

This item has been classed as being in Grade A Condition, fully working with only minor signs of use. The number "6" button label is missing however the button funtions

Included Accessories

  • Power Cable
  • Rack-Mount Ears


  • 180 Days Warranty


SKU 1792
Barcode # 239847102398751049326097169782346
Brand Kramer
