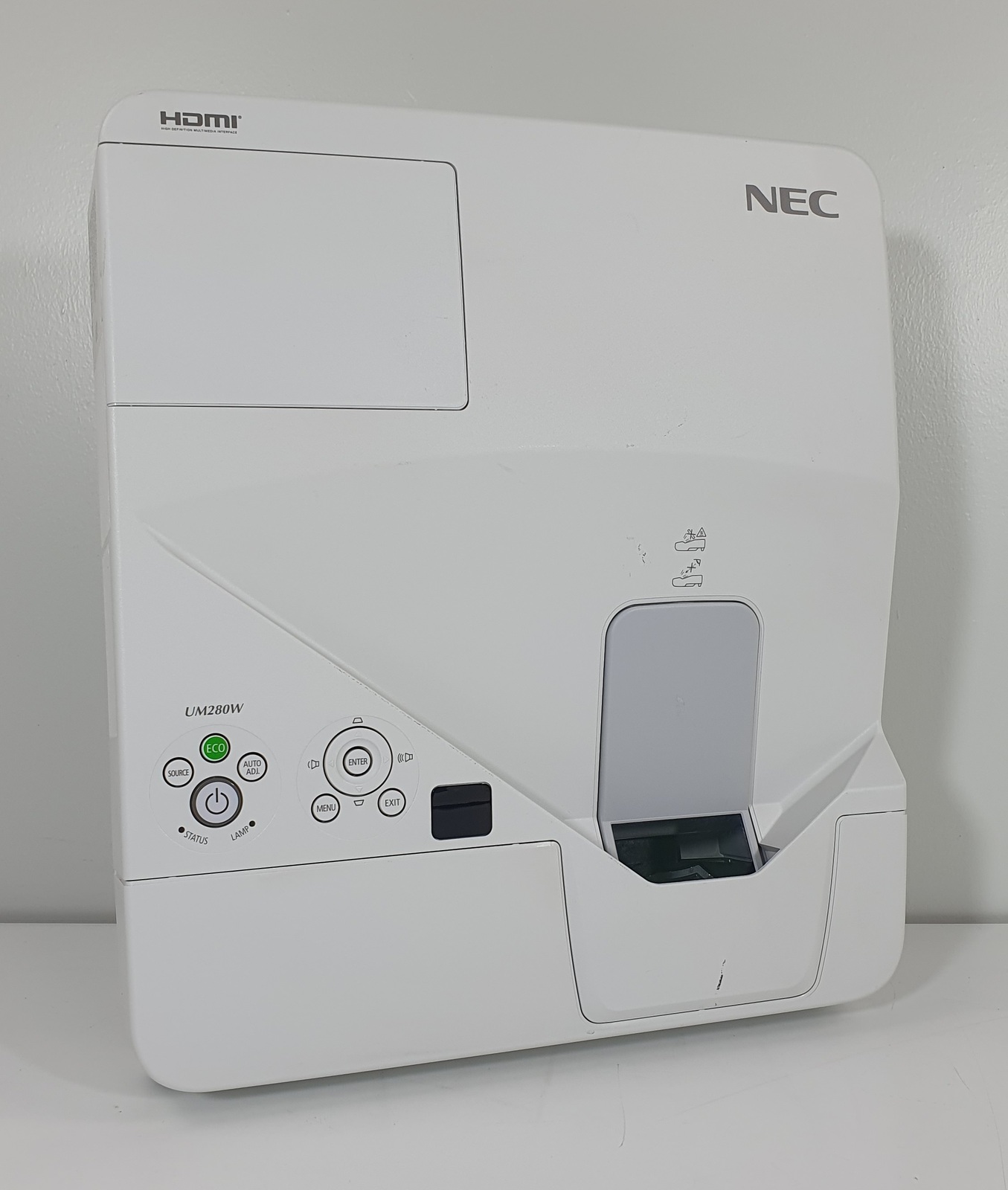

NEC UM280W Professional WXGA 3LCD Ultra Short Throw Projector

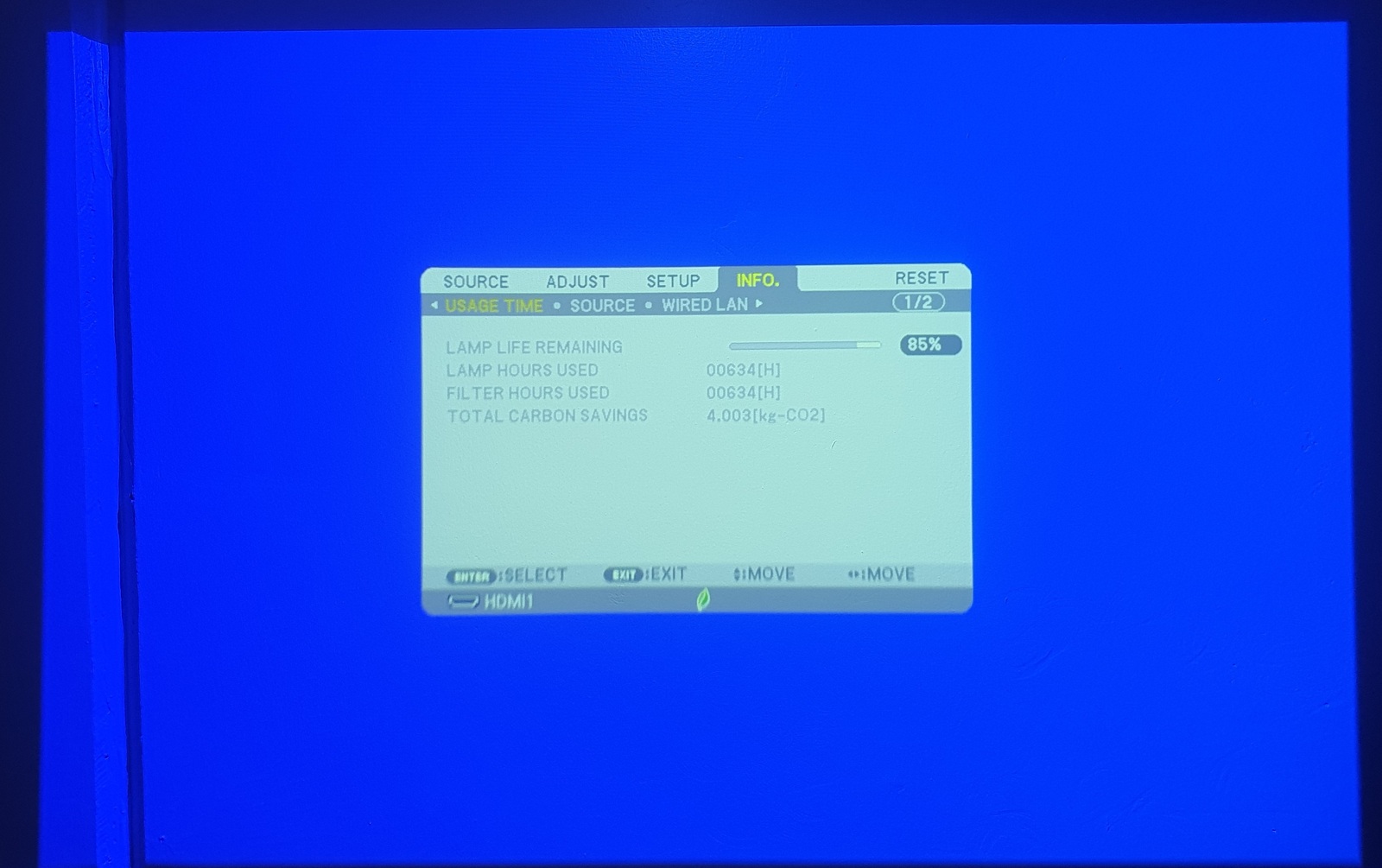

These are used items with a range of 150 - 1570 lamp hours used

NO REMOTE


  • Projection Technology: 3LCD Technology
  • Native Resolution: 1280 x 800 (WXGA)
  • Aspect Ratio: 16:10
  • Contrast Ratio: 1 3000:1
  • Brightness: 2800 ANSI Lumen (approx. 75% in Normal, 60% in Eco Mode)
  • Lamp: 230 W High Bright / 170 W Normal / 140 W Eco Mode
  • Lens F= 1.8, f= 4.78 mm
  • Projection Angle [°]: 49.2
  • Projection Factor: 0.36 : 1
  • Projection Distance [m]: 0.11 – 0.51
  • Screen Size (diagonal) [cm] / [inch]: Maximum: 279.4 / 110"; Minimum: 147.3 / 58"
  • Zoom: 1.4 x Digital Zoom
  • Focus Adjustment: Manual
  • Frequency Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz

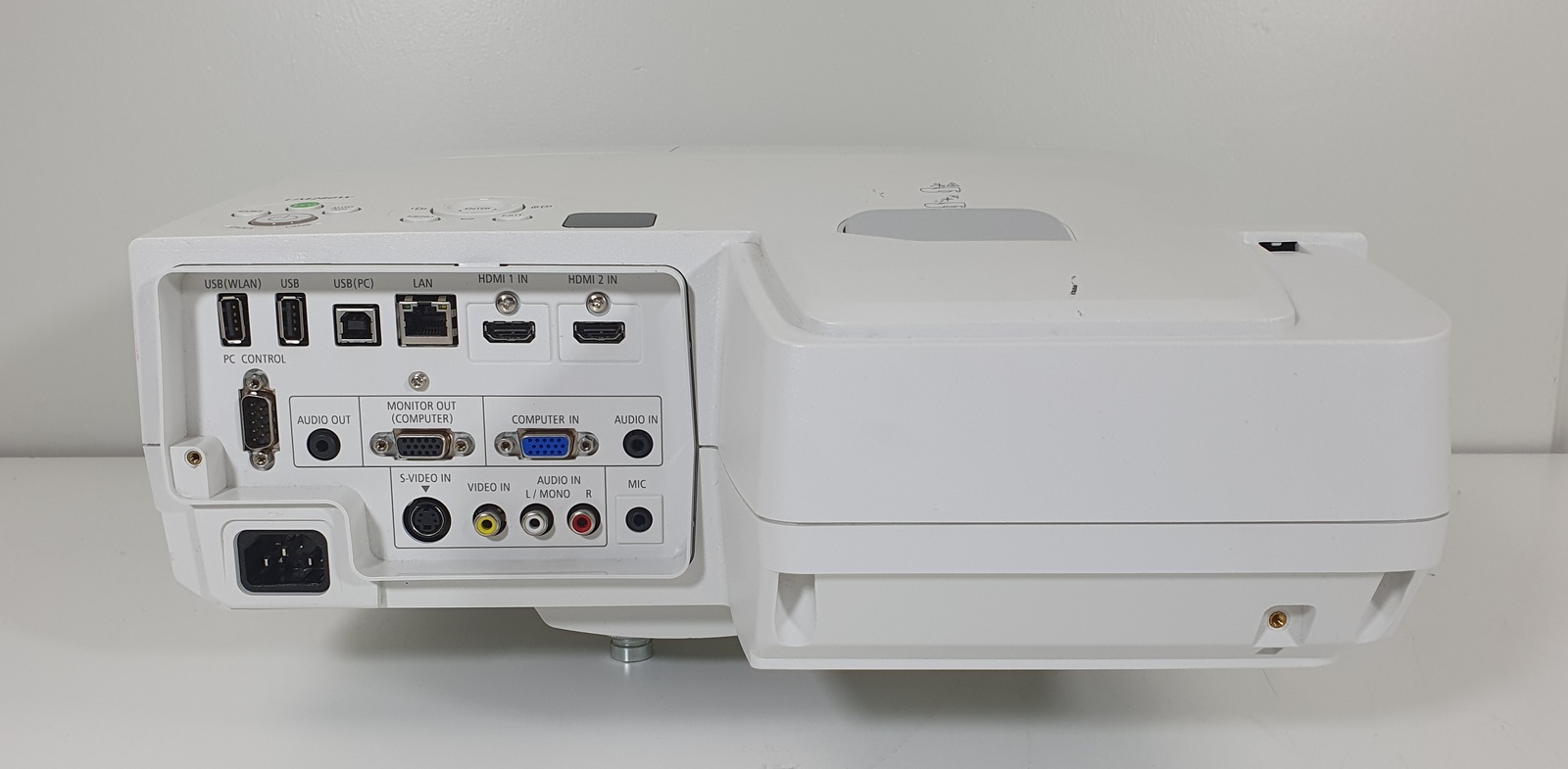

CONNECTIVITY

  • RGB (analog):
    • Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
    • Output: 1 x Mini D-sub 15 pin
  • Digital Input: 2 x HDMI™ (Deep Color, Lip sync)
  • Video Input: 1 x RCA
  • S-Video Input: 1 x Mini DIN 4-pin
  • Audio:
    • Input: 1 x 3.5 mm Stereo Mini Jack; 2 x RCA Stereo
    • Output: 1 x 3.5 mm Stereo Mini Jack (variable)
  • Microphone Input: 1 x 3.5 mm Stereo Mini Jack (Dynamic mic)
  • Control Input: 1 x D-Sub 9 pin (RS-232) (male)
  • LAN 1 x RJ45; Optional WLAN
  • USB:
    • 1 x Type B
    • 2 x Type A (USB 2.0 high speed)

  • Video Signals NTSC; NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM

GENERAL

  • Dimensions (W x H x D) [mm]: 378 x 112 x 428 (without lens and feet)
  • Weight [kg]: 5.6
  • Fan Noise [dB (A)]: 28 / 28 / 35 (ECO / Normal / High Bright)

ADDITIONAL FEATURES

  • AMX Beacon
  • Auto Eco Mode
  • Auto Power ON/OFF
  • Carbon Savings Meter
  • Colour Management
  • Content Transmission via Network
  • Contrast Ratio 3000:1 with Iris
  • Crestron RoomView
  • DICOM simulation
  • Direct Power-Off Function
  • High Altitude Mode
  • Kensington security slot
  • Keypad Lock
  • Magnify
  • Manual vertical Keystone Correction (V= ±10°)
  • NaViSet Administrator 2
  • Off-Timer
  • Optional User Logo
  • Optional WLAN
  • OSD with 29 languages
  • Password Security System
  • PJ LINK
  • Quick On/Off
  • Remote control and administration via LAN and RS232
  • Security Bar
  • Test Pattern
  • USB Display
  • USB Viewer for JPEG
  • Virtual Remote for direct PC control
  • Wall Colour Correction

INCLUDES

  • NEC UM280W Projector
  • Power Cable
  • HDMI



(1088)

SKU 1088
Barcode # 5028695609938
Brand NEC
