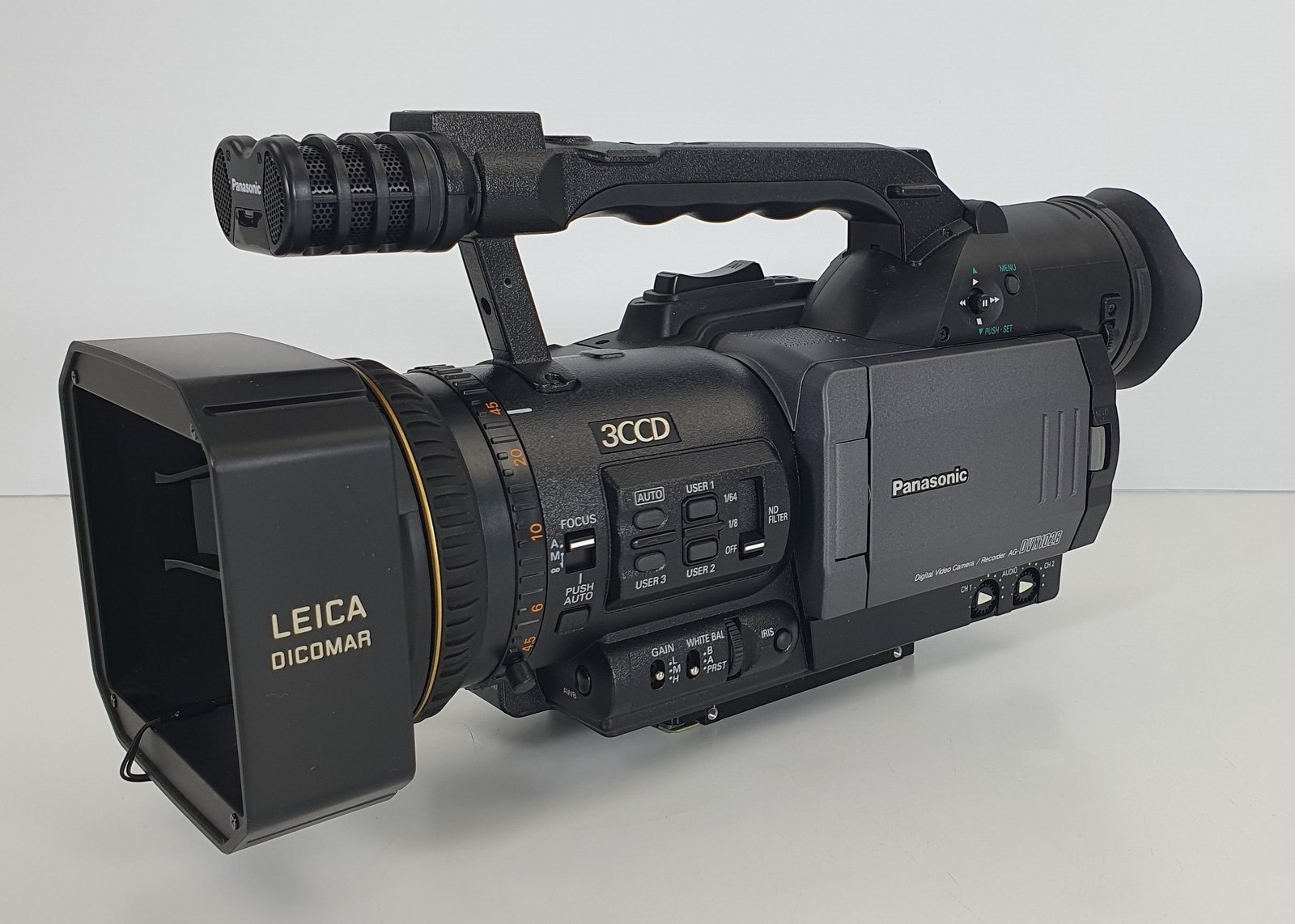

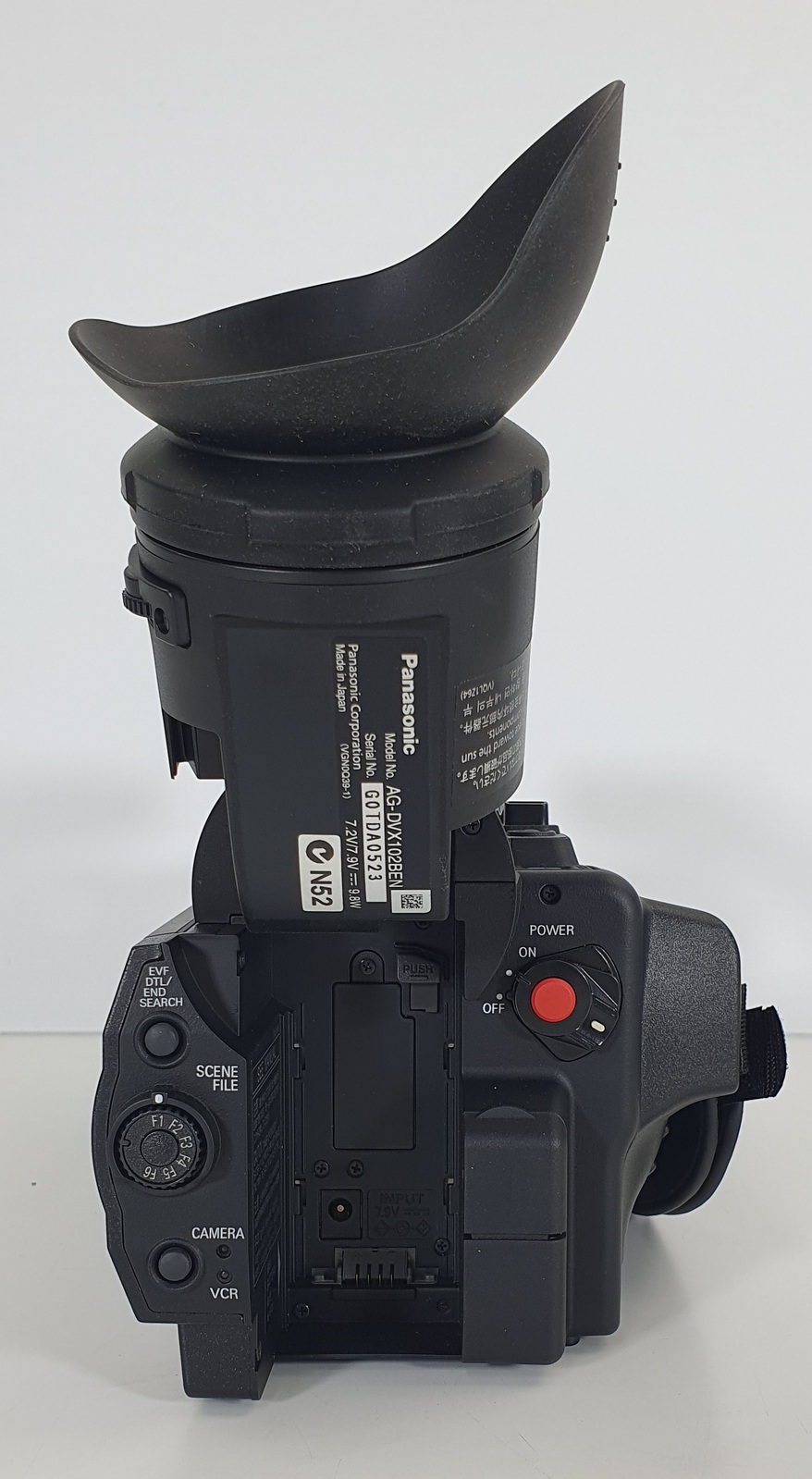

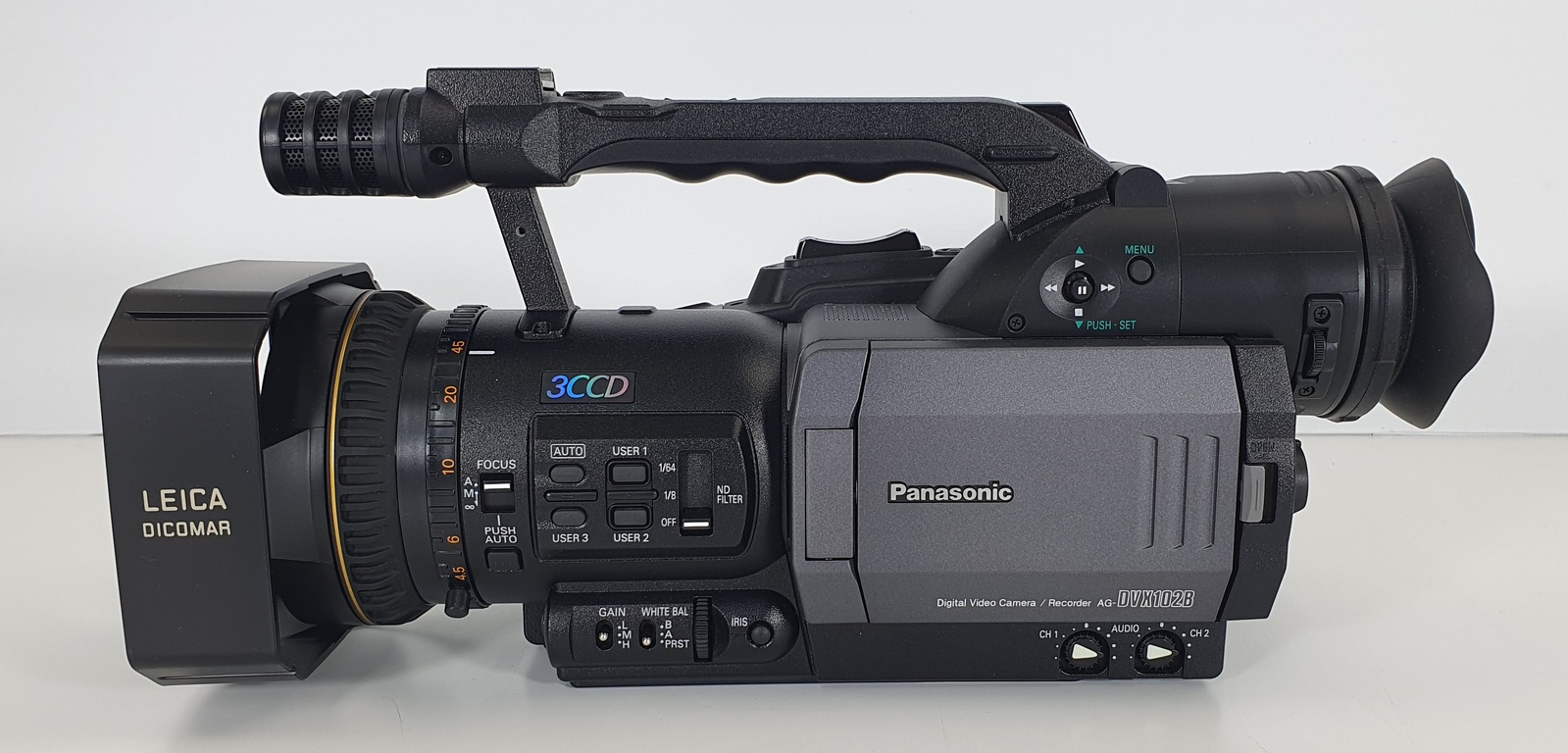

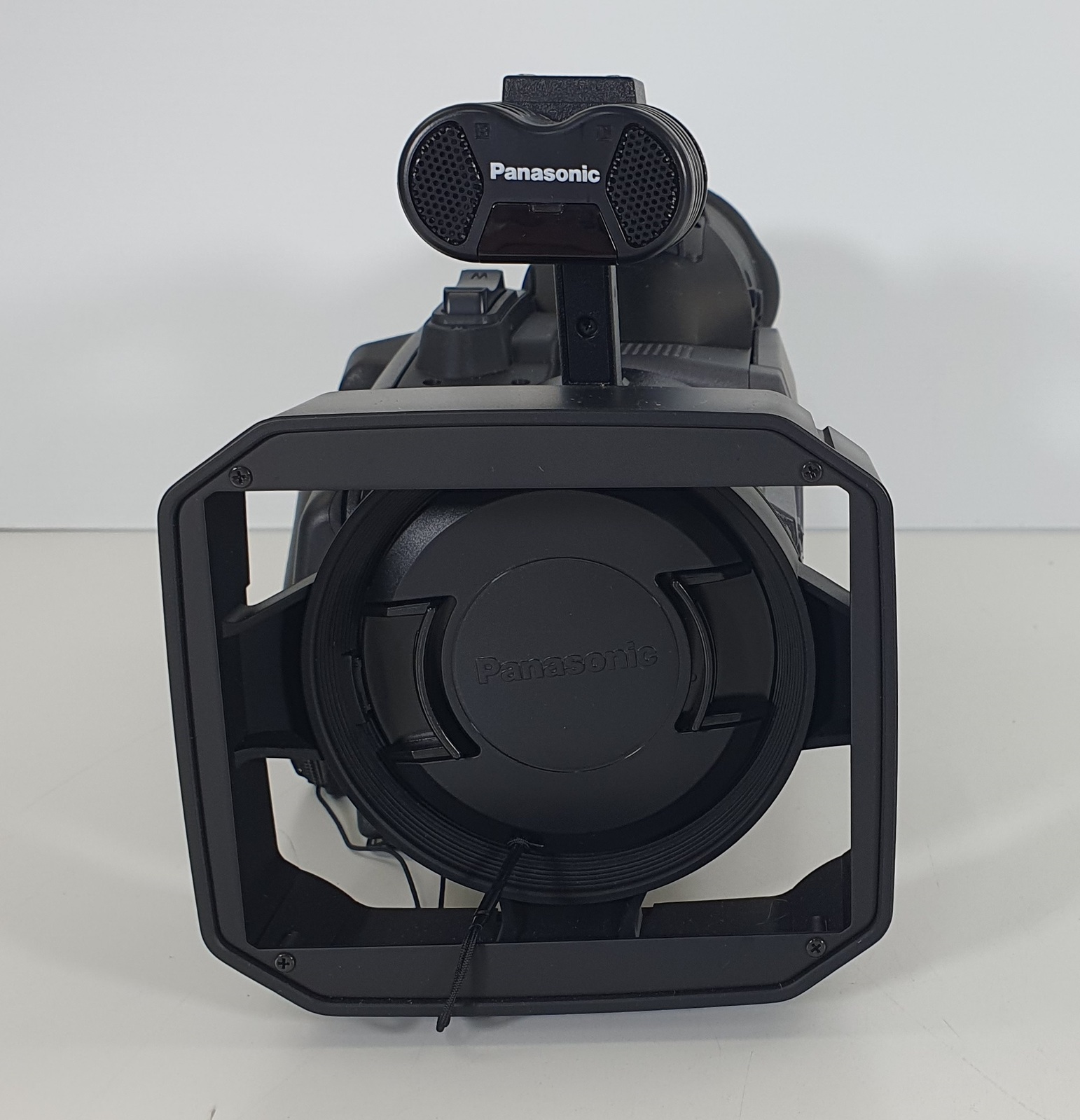

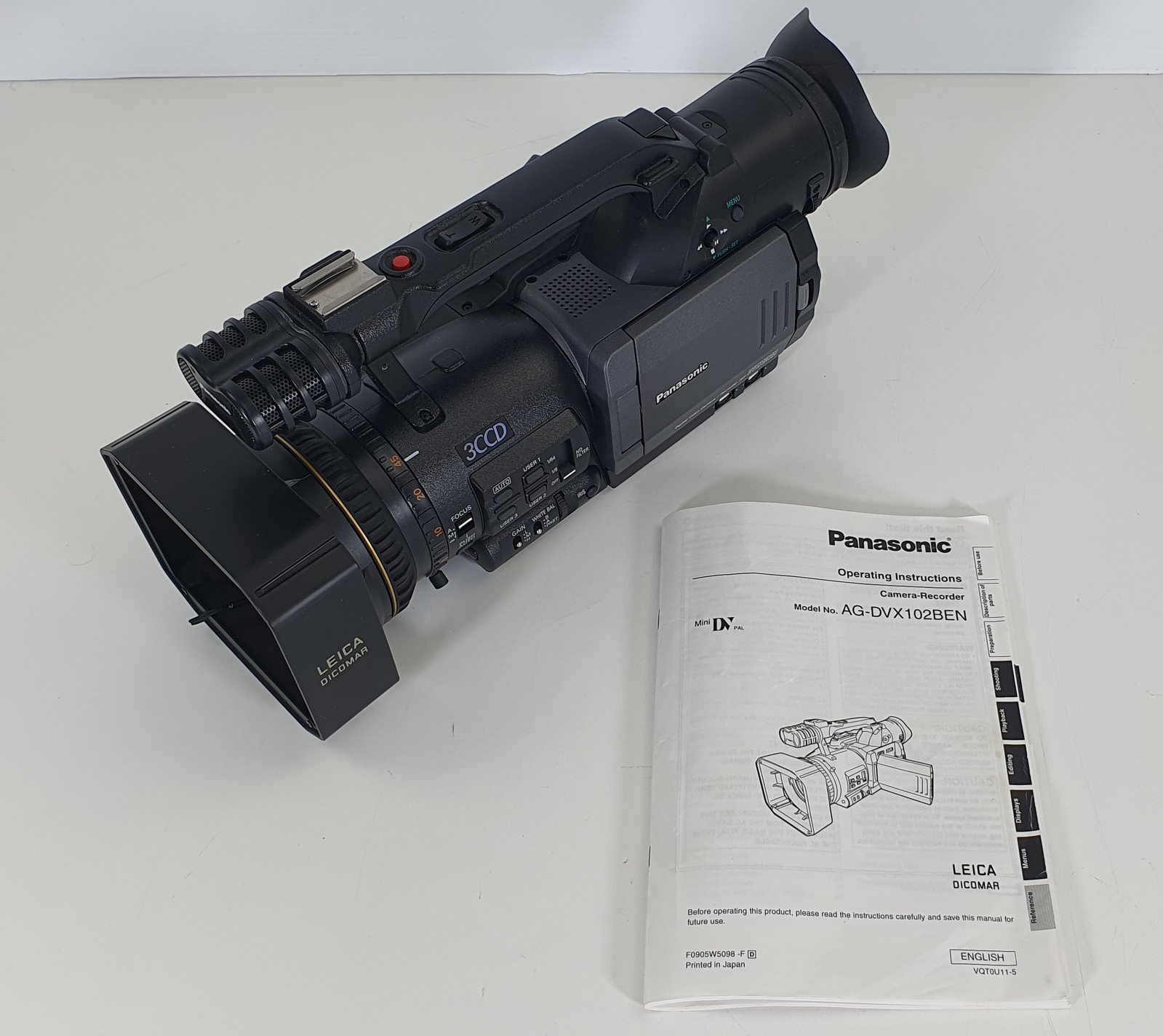

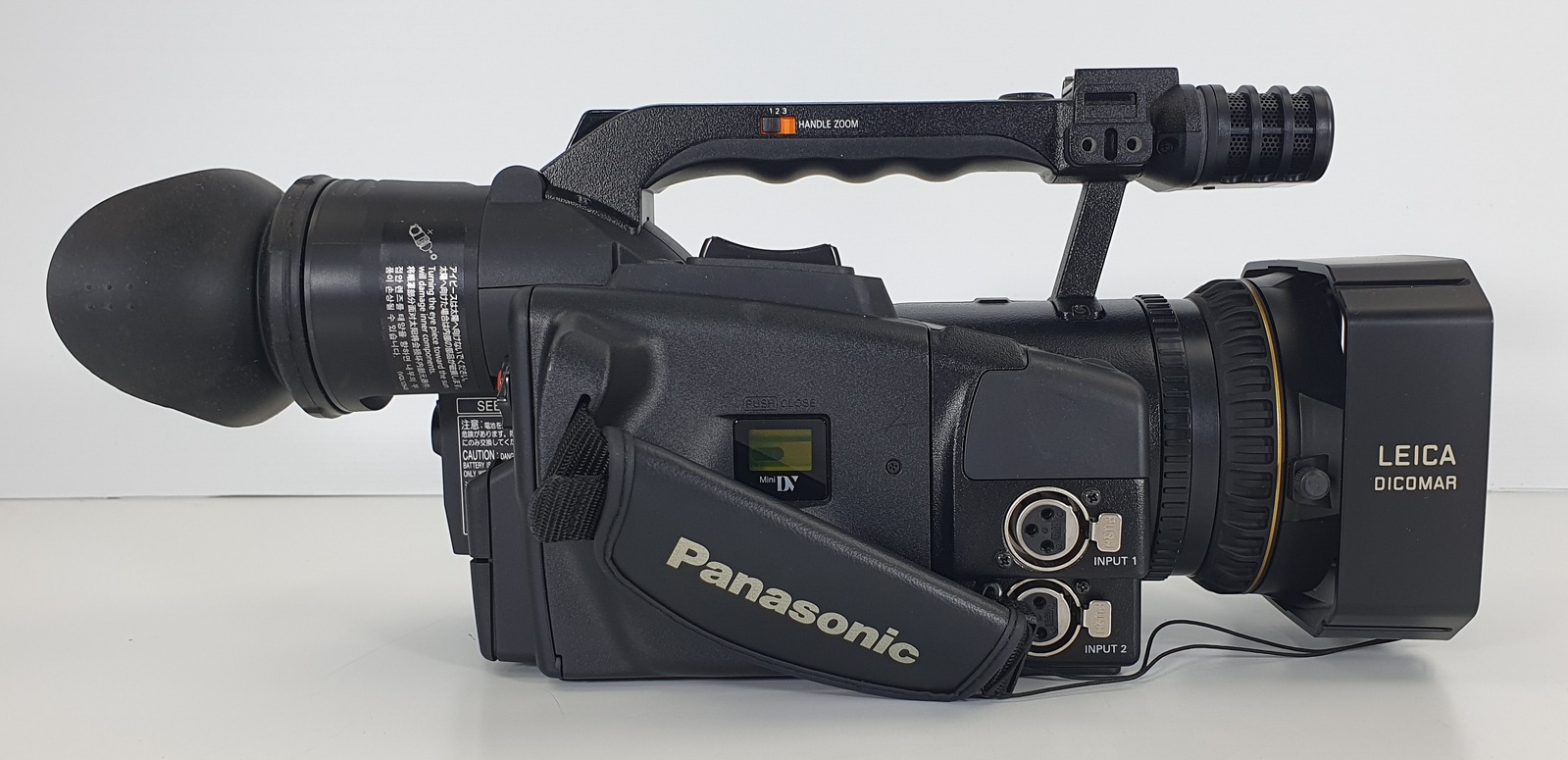

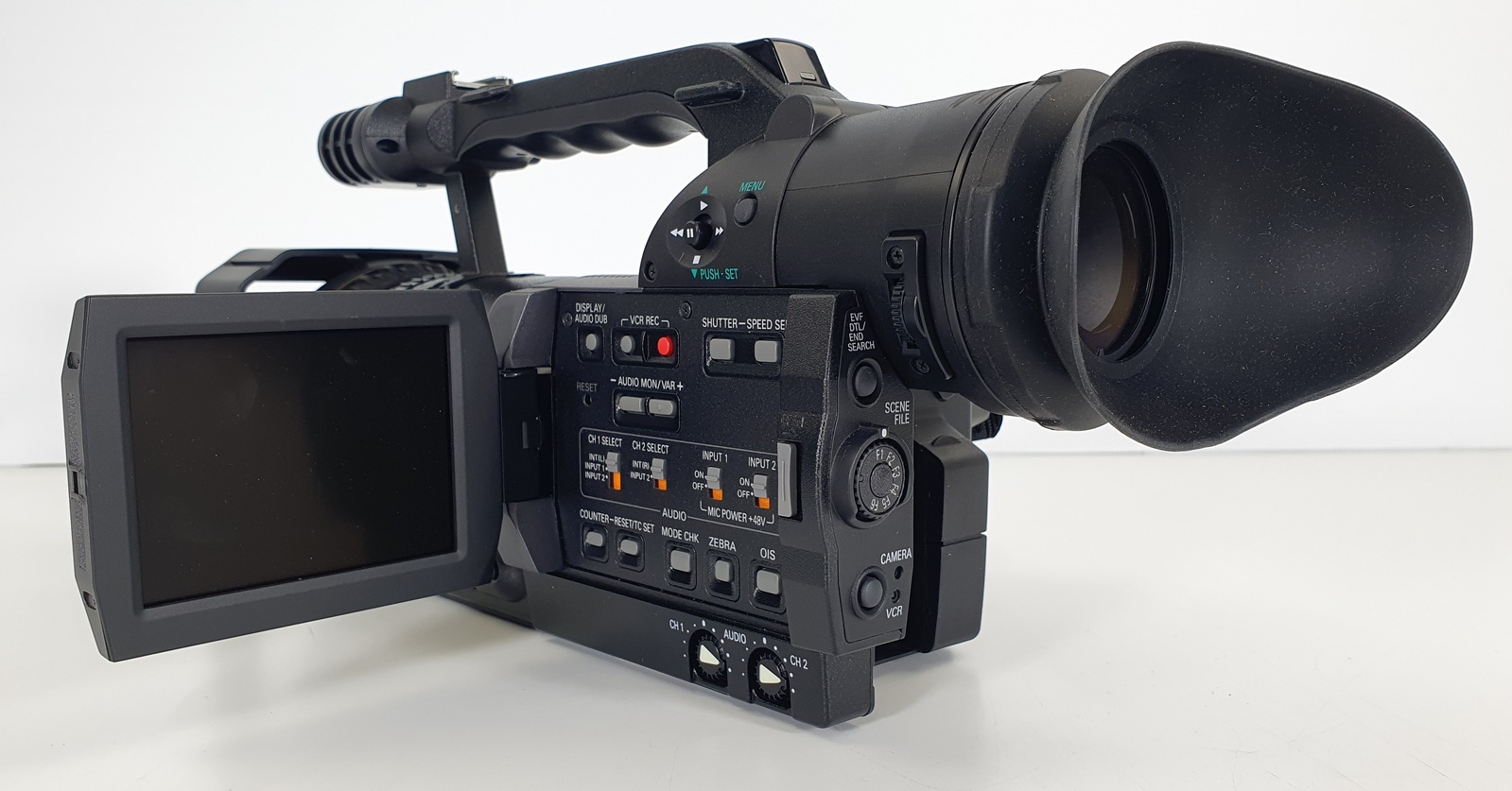

Panasonic Mini DV Camcorder / Recorder AG-DVX102BEN
Batteries are untested.
Specifications
GENERAL
- Supply Voltage: DC 7.2/7.9 V
- Power Consumption: 6.8 W (when viewfinder is used)
- 7.2 W (when LCD monitor is used), 9.8 W (max.)
- Operating Temperature: 0°C to +40°C
- Operating Humidity: 10% to 85% (no condensation)
- Weight: 1.7 kg, 1.9 kg with battery and cassette
- Dimensions (WxHxD): 139 x 160 x 364 mm
CAMERA
- Pick-up Device: 1/3-inch interline transfer type CCD x 3 (progressive modes supported)
- Picture Elements: Total: 470,000 pixels Effective: 440,000 pixels (horizontal pixel shift system)

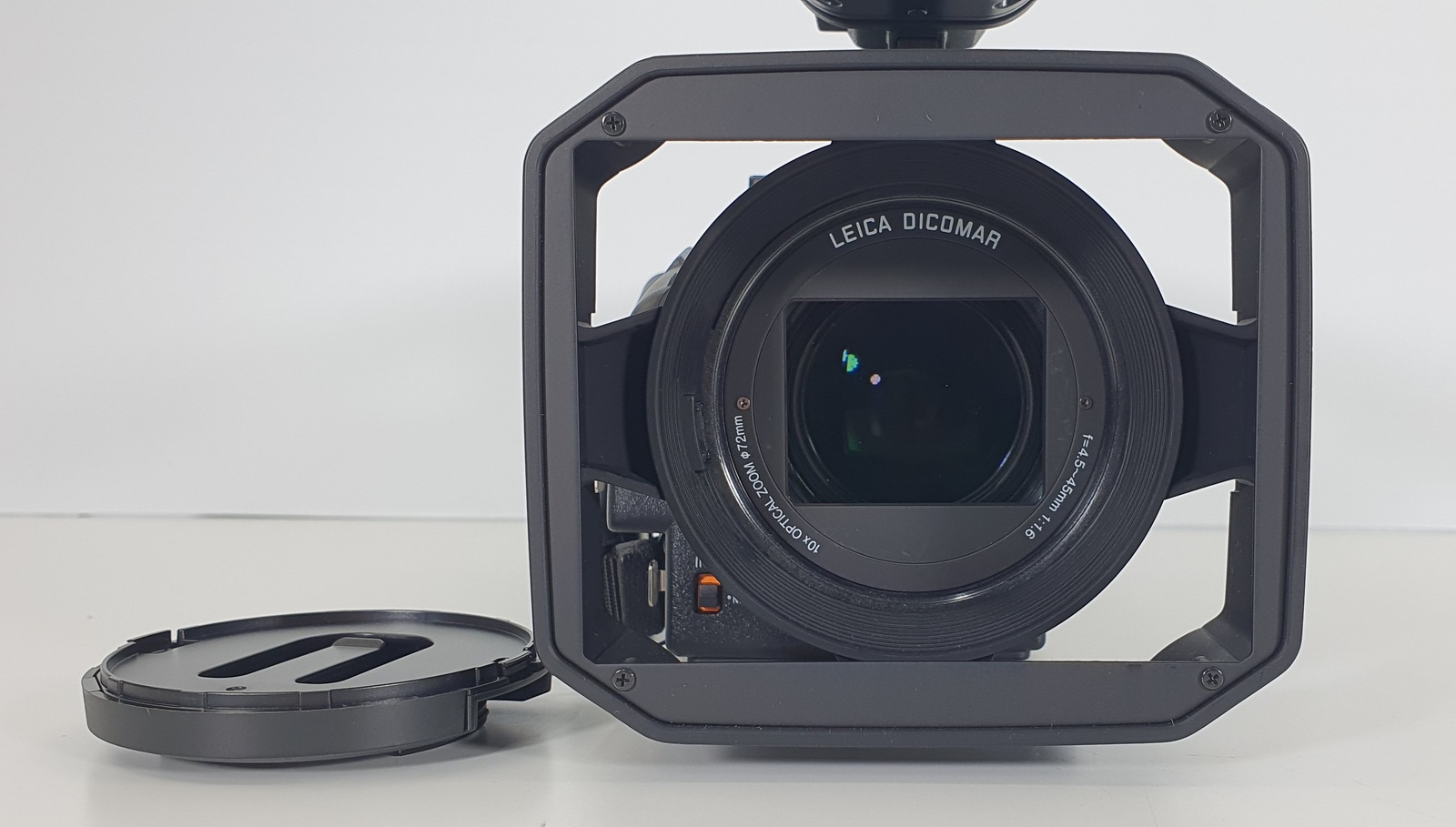

- Lens: Leica DICOMAR lens with optical image stabilizer, motorized/manual mode switching, 10x zoom, F 1.6 (f = 4.5 to 45 mm) (35 mm equivalent: 32.5 to 325 mm)
- Filter Diameter: 72 mm
- Optical Colour Separation: Prism system
- Optical Filter: ND Filters, 1/8ND, 1/64ND
- Shooting Mode: 50i (625i) interlaced fields, Progressive mode (25P)
- Gain Selection: 50i mode: 0, +3, +6, +9, +12, +18 dB, 25P mode: 0,+3,+6,+9,+12 dB (0dB fixed, when slow shutter mode )
- Preset Shutter Speeds: 50i mode: 1/50 (OFF), 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec. 25P mode: 1/25, 1/50 (OFF), 1/60, 1/120, 1/250, 1/500,1/1000 sec.
- Synchro Scan Shutter Speeds: 50i mode: 1/50.2 to 1/248.0 sec. 25P mode: 1/25.1 to 1/248.0 sec.
- Slow Shutter Speeds: 50i mode: 1/3, 1/6, 1/12, 1/25 sec. 25P mode: 1/3, 1/6, 1/12 sec.
- Sensitivity: F11.0 at 2000 lux
- Minimum luminance: 3 lux (F 1.6, 18 dB gain, 50 IRE video output)
VTR
- Tape Used: 6.35 mm wide metal tape (mini DV cassette)
- Recorded Audio Signals: PCM digital recording 16 bits: 48 kHz/2 channels, 12 bits: 32 kHz/4 channels
- Recording Tracks: Digital video, audio signals: helical track
- Time code: helical track (sub-code area)
- Tape Speed: SP mode: 18.831 mm/sec., LP mode: 12.568 mm/sec.
- Recording Time: SP mode: 60 minutes, LP mode: 90 minutes (when AY-DVM63 is used)
- FF/Rew Time: Approx. 140 sec. (when AY-DVM63 is used)
VIDEO
- Sampling Frequencies: Y: 13.5 MHz, PB/PR: 6.75 MHz
- Quantizing: 8 bits
- Video Compression System: DCT + variable length code
- Error Correction: Reed-Solomon product code
AUDIO
- Sampling Frequency: 48 kHz/32 kHz
- Quantizing: 16 bits/12 bits
- Frequency Characteristics: 20 Hz to 20 kHz
- Wow & Flutter: Below measurable limits
CONNECTORS
- VIDEO IN/OUT: RCA x 1, analogue composite input/output, 1.0 Vp-p, 75 (input/output automatically switched)
- S-VIDEO IN/OUT: DIN 4pin x 1, Y/C separate signal input/output, Y: 1.0 Vp-p, C: 0.3 Vp-p, 75 (input/output automatically switched)
- AUDIO IN/OUT: RCA x 2 (CH1, CH2)
- Input: 316 mV, high impedance
- Output: 316 mV, 600 (input/output automatically switched)
- DV: 4-pin, digital input/output, IEEE 1394 standard
- MIC/LINE INPUT: XLR (3 pins) x 2 (CH1, CH2), LINE/MIC switching, high impedance
- LINE: 0 dBu, MIC: –50 dBu/–60 dBu (menu selection)
- DC INPUT: 7.9 V
- PHONES: Stereo (3.5 mm diameter), 100
- CAM REMOTE: Zoom S/S:Mini jack (2.5 mm diameter)
- Focus IRIS: Mini jack (2.5 mm diameter)
ON-BOARD EQUIPMENT
- LCD Monitor: 3.5-inch LCD colour monitor, 210,000 pixels
- Viewfinder: 0.44-inch LCD colour viewfinder, 235,000 pixels
- Internal Microphone: Stereo microphone
- Internal Speaker: 28 mm round shape, volume – or +
AC ADAPTER
- Power Source: 110/120/220/240 V AC, 50/60 Hz
- Power Consumption: 18 W
- Weight: 0.16 kg
- Dimensions (WxHxD): 70 x 44.5 x 116 mm
Condition
This item has been classed as being in Grade A Condition, fully working with only minor signs of use.

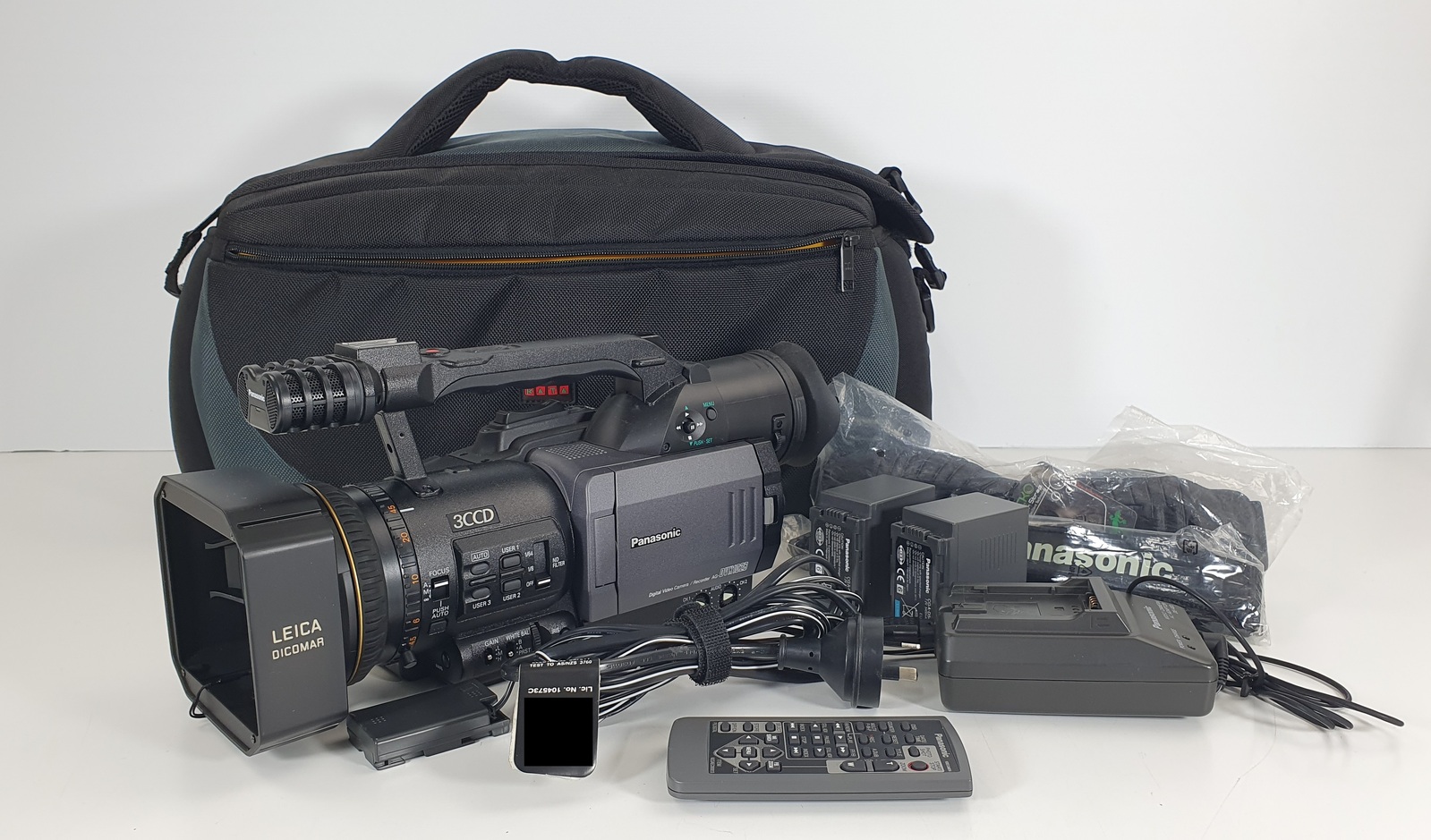

Included Accessories
- Panasonic Camcorder
- Carry case
- Mains power adapter
- battery charger
21112023
(2265)
| SKU | 2265 |
| Barcode # | 2000000004624102 |
| Brand | Panasonic |
| Model | AG-DVX102BEN |
| Operating System | No OS Installed |
