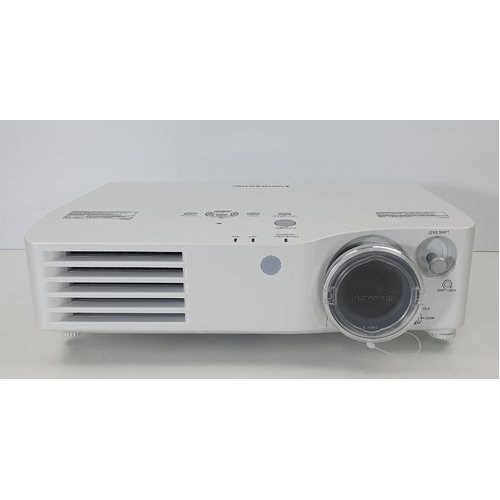

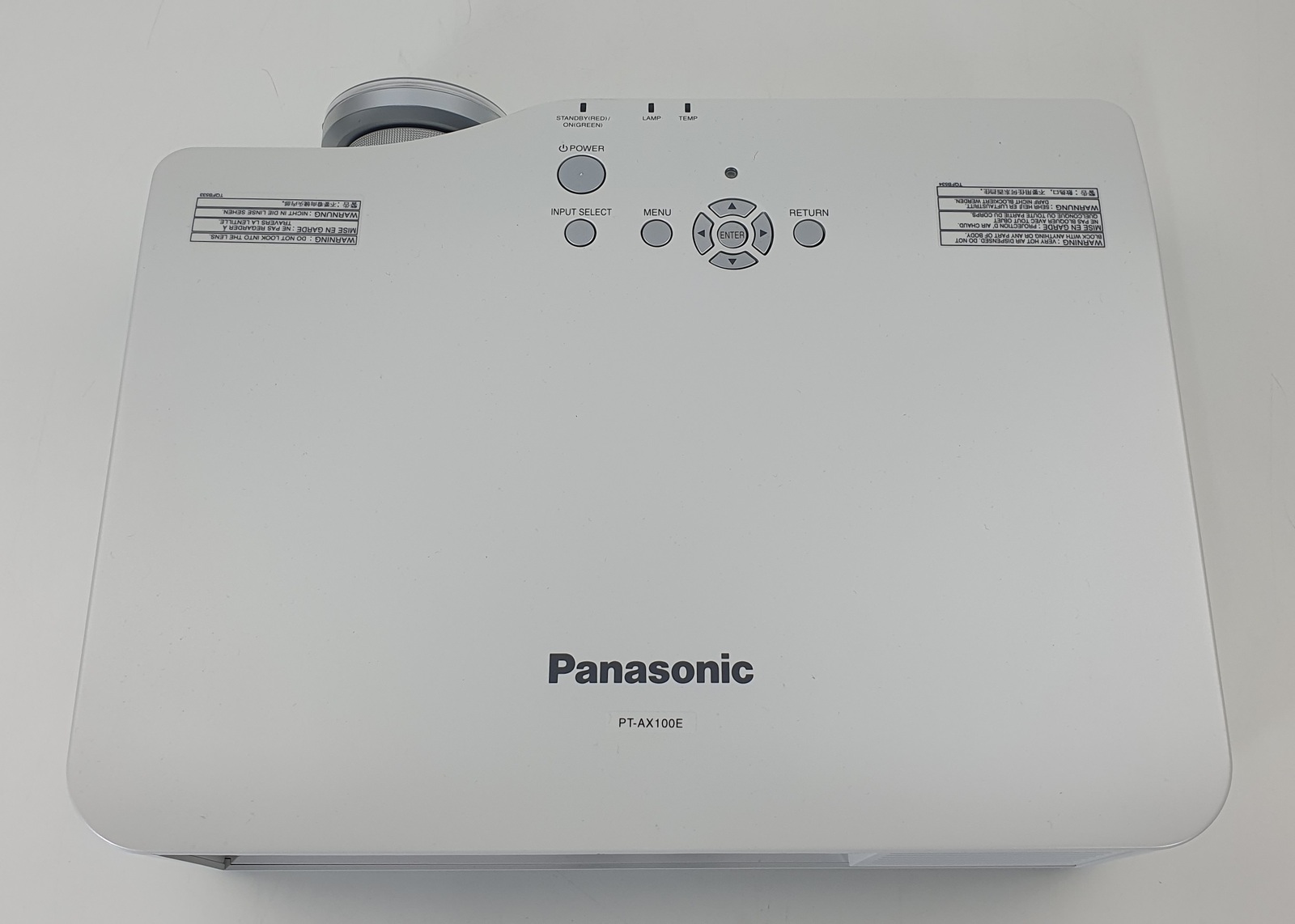

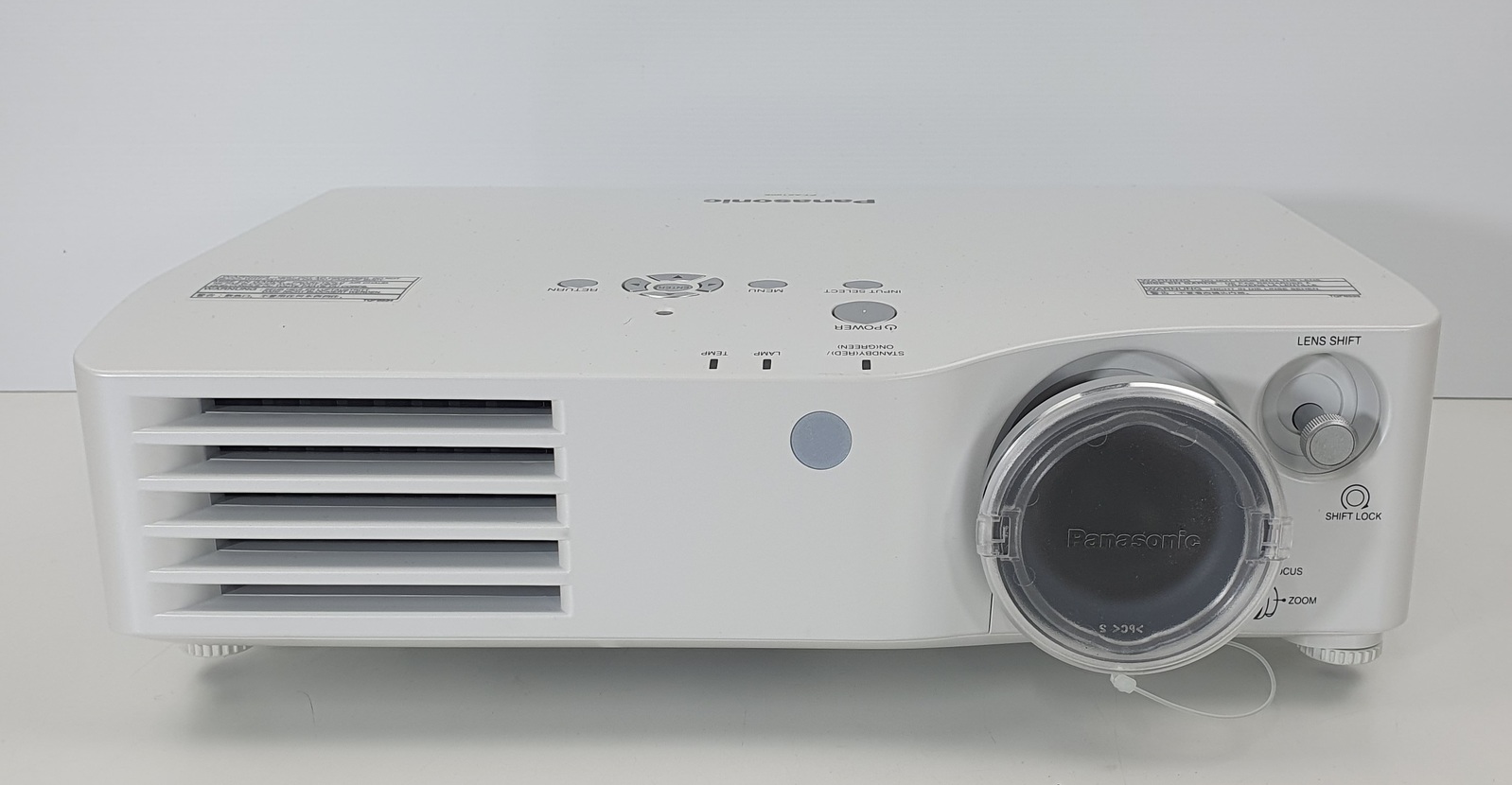

Panasonic PT-AX100E LCD Home Theatre Projector

This is a used item with 4 normal lamp hours used.

NO REMOTE

Specifications

• Power supply - 100–240 V AC, 50/60 Hz
• Power consumption - 290 W (Approx. 0.08 W in standby mode with fan stopped)
• Amps - 2.2 A–1.0 A

LCD panel

• Panel size - 0.7˝ (17.78 mm) diagonally
• Aspect ratio - 16:9 aspect ratio
• Display method - Transparent LCD panel (x 3, R/G/B)
• Drive method - Active matrix
• Pixels - 921,600 (1280 x 720) x 3, total of 2,764,800 pixels
• Lens - Manual zoom (2x)/Manual focus, F 1.9 - 3.1, f 21.7 mm - 43.1 mm
• Brightness - 2,000 lumens*1
• Contrast - 6,000:1*3 (full on/full off)
• Center-to-corner uniformity ratio - 85%
• Colors - Full color (1,070,000,000 colors)
• Projection size - 1,016–5,080 mm (40–200 inches) diagonally, 16:9 aspect ratio
• Throw distance - 1.2 m–12.4 m (3´11˝–40´8˝)
• Screen aspect ratio - 16:9 (4:3 compatible)
• Resolution - RGB: 1280 x 720 pixels (1920 x 1080 pixels with compression)
• Scanning frequency for RGB - Horizontal: 30–70 kHz, Vertical: 50–87 Hz
• YPBPR signal compatibility - 525i (480i), 525p (480p), 625i (576i), 625p (576p), 750 (720)/50p, 750 (720)/60p, 1,125 (1,080)/24p, 1,125 (1,080)/50i, 1,125 (1,080)/50p, 1,125 (1,080)/60i, 1,125 (1,080)/60p
• Color system - NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM
• Optical axis shift - Horizontal ±25% and vertical ±63%
• Keystone correction range - Vertical: approx. ±30°
• Installation - Ceiling/desk, front/rear
• OSD languages - (menu selection) English, French, German, Spanish, Italian, Chinese, Korean, Russian, Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese, Thai

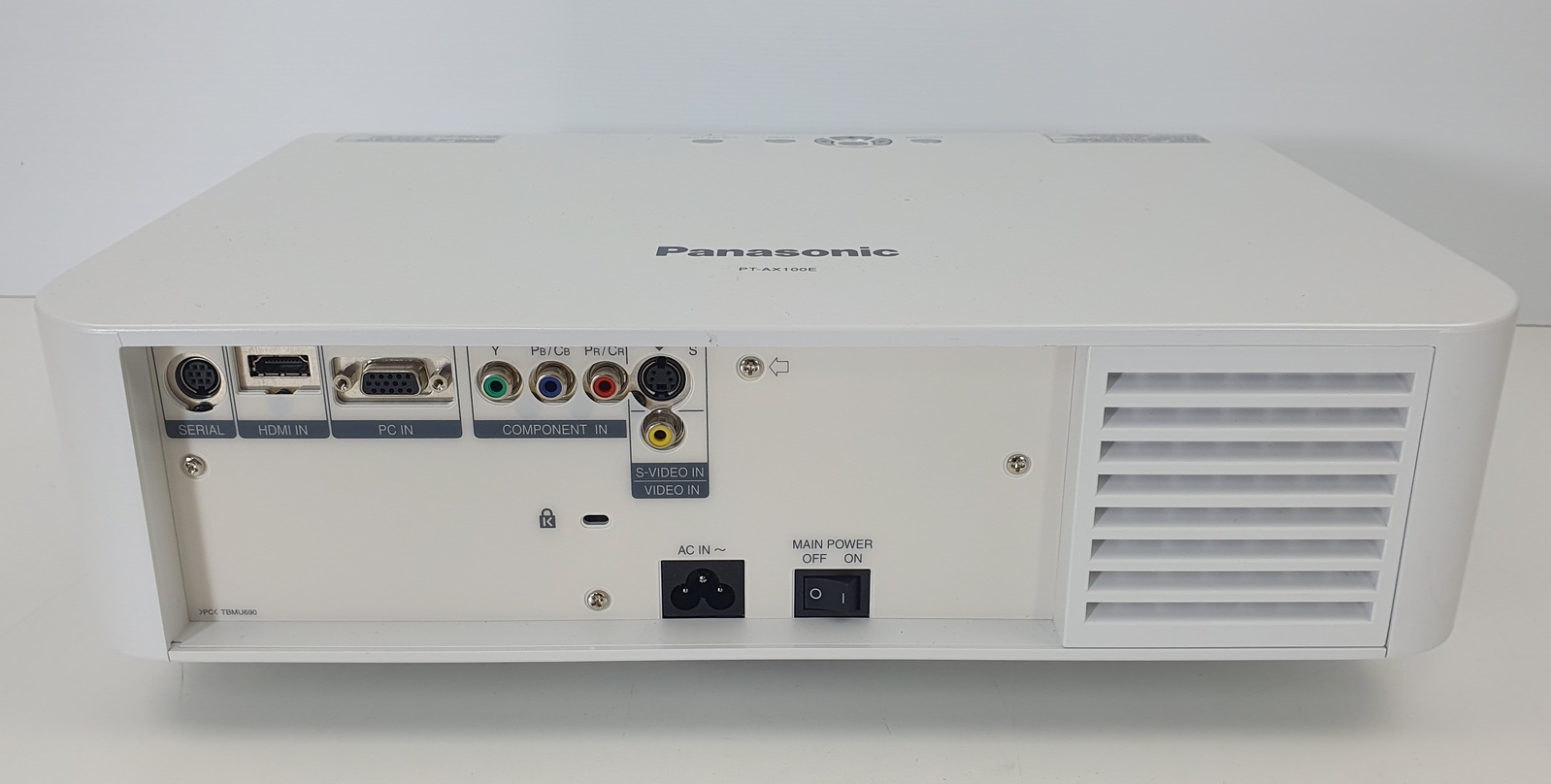

Terminals

• S-VIDEO IN    Mini DIN 4-pin x 1, Y: 1.0 Vp-p,C: 0.286 Vp-p, 75 ohms
• VIDEO IN    RCA pin x 1, 1.0 Vp-p, 75 ohms
• PC (RGB) IN    D-sub HD 15-pin (female) x 1 R, G, B: 0.7 Vp-p (1.0 Vp-p for Sync on G), 75 ohms HD/SYNC, VD: TTL, high impedance (positive/negative polarity)
• COMPONENT IN    RCA pin (Y, PB/CB, PR/CR) x 1, Y: 1.0 p-p, 75 ohms PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
• HDMI IN    19-pin HDMI connector x 1
• SERIAL    Mini DIN 8-pin x 1 (RS-232C based)
• Dimensions - (W x H x D)    395 x 112 x 300 mm(15-17/32˝ x 4-13/32˝ x 11-25/32˝)
• Weight    4.9 kg (10.8 lbs.)

INCLUDES

• PT-AX100E Projector
• Power Cable
• HDMI
• VGA
